Visionwide Uk Fire Alarm Sounder
Features of Visionwide Uk Fire Alarm Sounder
Designed for use with fire alarm systems, security systems and industrial signaling systems.
Combined sounder and beacon provides an audio-visual warning which is suitable for places where high sound output and visual indication is required.
Product specifications
- • 32 signal tones selectable by Dip switch
- • High sound output with low current consumption
- • High efficiency lens for maximum light output
- • Volume Control as standard
- • Two sets of IN and OUT terminals, easy for installation
Solely Marketed & Distributed By
FABULOUS VISION GLOBAL SOLUTIONS LIMITED
97/99 Arolaya St, Lagos Island 101223, Lagos, Nigeria
uc .visionwide @ gmail.com
fabulous @ visionwideuk .com.ng
+234 703 805 1980
+234 809 237 0955
Technical Data
| Model | AH-312-S | AH-318-SF |
|---|---|---|
| Voltage Range | 24V DC | |
| Current Consumption 24V DC (tone 3) | 14.5mA | |
| Sound Output 24V DC dB (A) at 1 meter | Max. 114 | |
| Volume Control | 0 to -20dB adjustment | |
| Ingress Protection | IP44 | |
| Ambient Temperature | -25¡æ ~ +80¡æ | |
| Material | ABS plastic | |
| Dimensions | 92.5mm(Dia.) x 94mm(H) | 92.5mm(Dia.) x 110mm(H) |
| Weight | 254g | 278g |

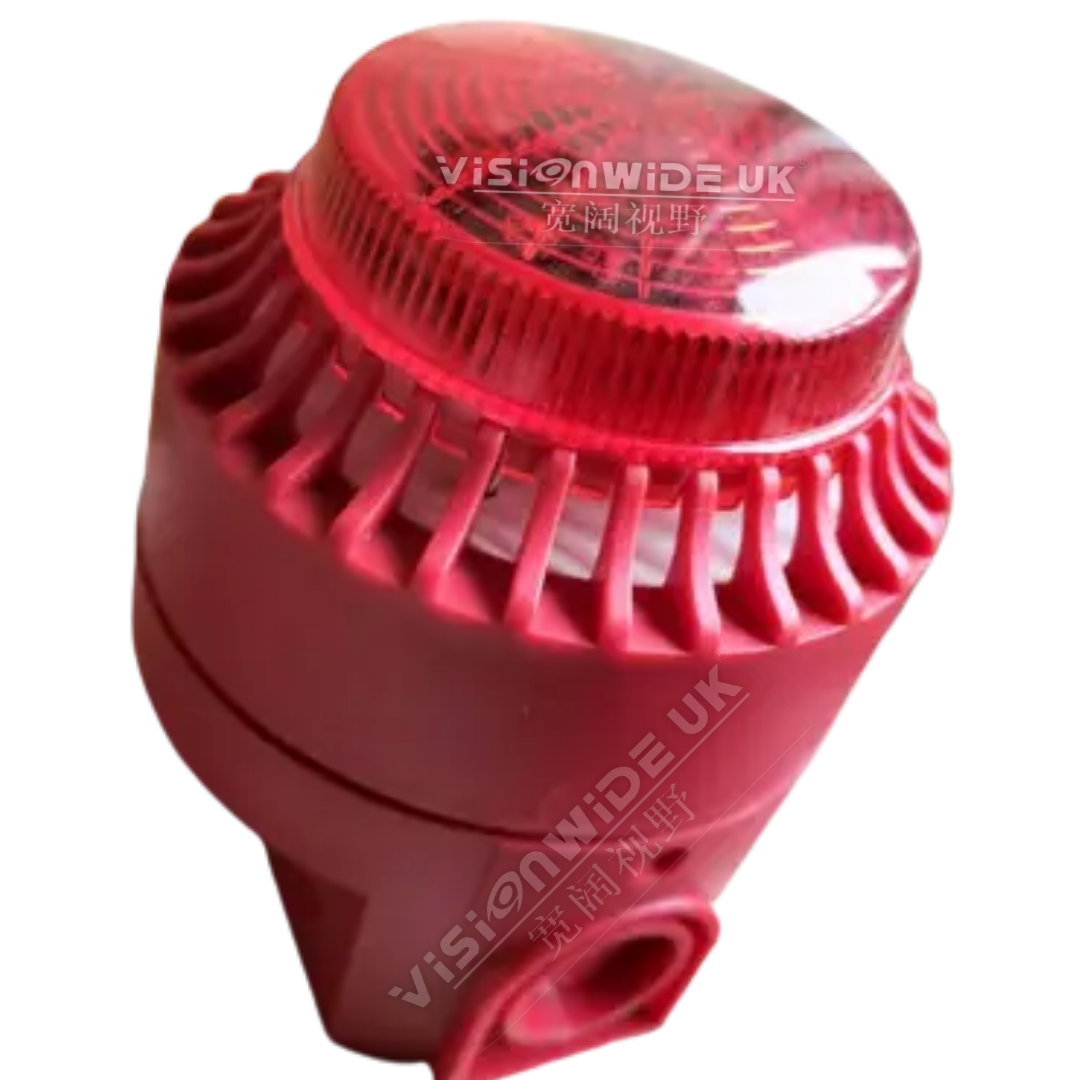

Product Photo
